AOWO manufactures high-performance gabion mesh, Reno mattresses, welded gabions and geosynthetic composites — engineered for riverbank protection, slope stabilization and military fortification.
Six pillars that turn a sample shipment into a long-term partnership.
No middlemen. As the source factory in Hebei — China's wire-mesh heartland — we deliver ASTM and EN-grade mesh at 18–30% below trading-house quotes.
Every batch is tested for tensile strength (≥ 38 kg/m²), zinc/aluminum coating weight (≥ 245 g/m²) and PVC adhesion, backed by ISO 9001, CE and EN 10223-3 documentation.
Mesh opening 60×80 to 120×150 mm, wire Ø 2.0–4.0 mm, Galfan or PVC coating — fabricated to your drawings with 7-day tooling for non-standard sizes.
FOB Tianjin / Qingdao / Shanghai, CIF to 80+ ports, DDP available for EU and North America. Palletized or fold-flat packing per ISPM-15.
For qualifying projects our engineering team provides CAD drawings, hydraulic load calculations, and on-site installation supervision on a paid-service basis. Scoping and quotation are handled together with your product order — request details with your inquiry.
One point of contact from inquiry to after-sales. Multilingual team (English / Spanish / Russian / Arabic) on WeChat, WhatsApp and email.
Wire diameter 2.0–4.0 mm · Mesh opening 60×80 – 120×150 mm · Coating: galvanized / Galfan (Zn-5Al-MM) / PVC

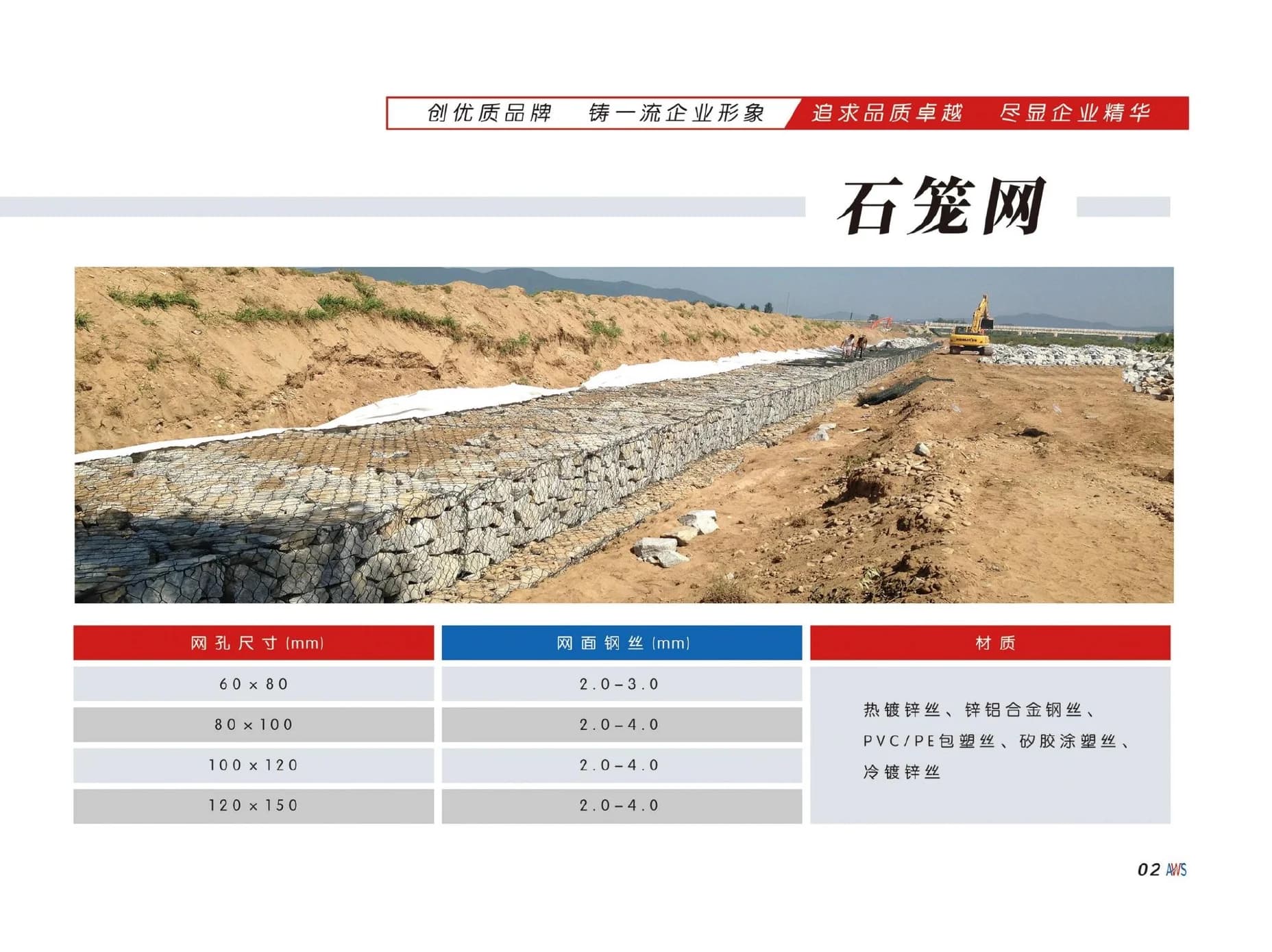

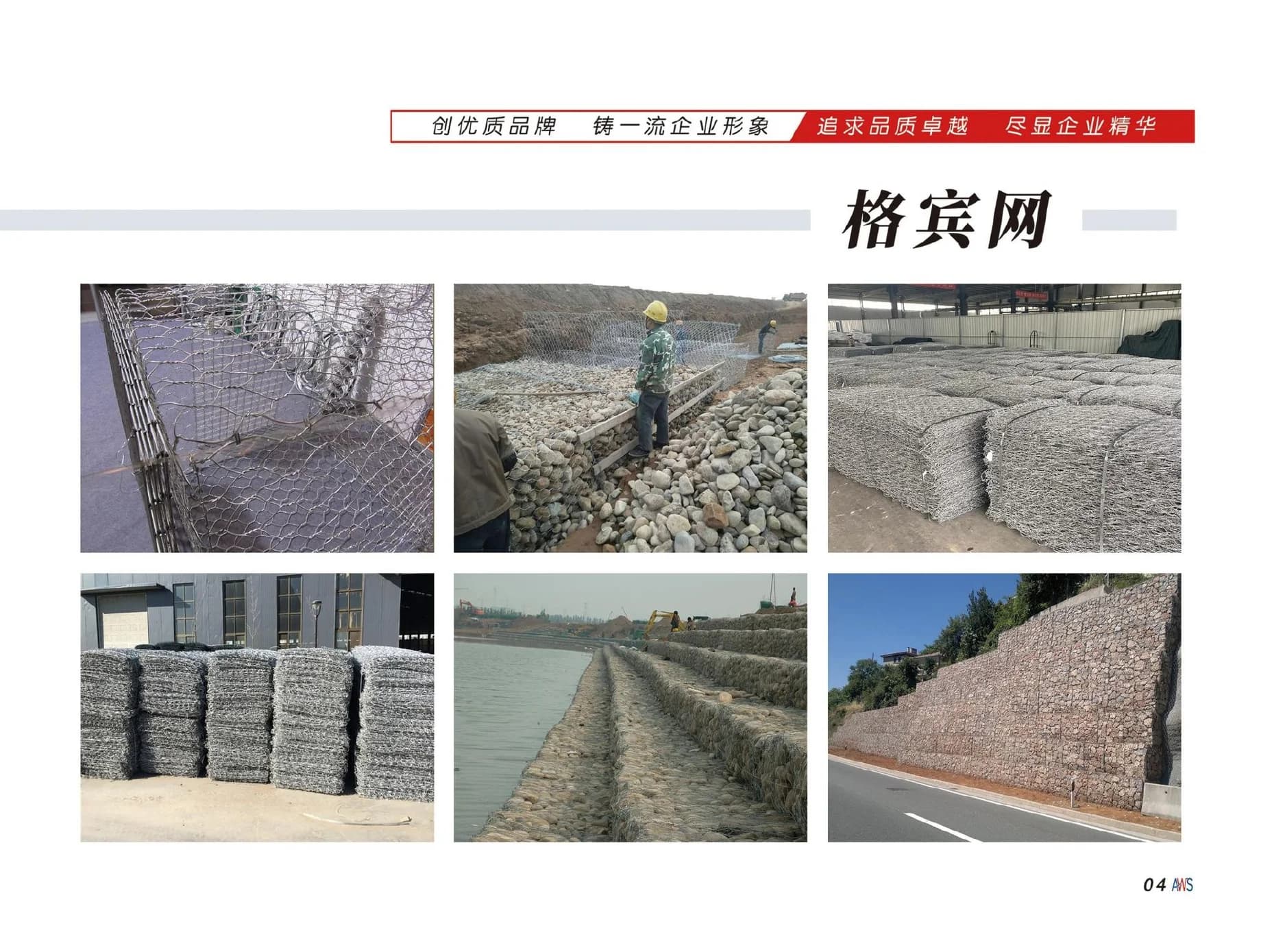

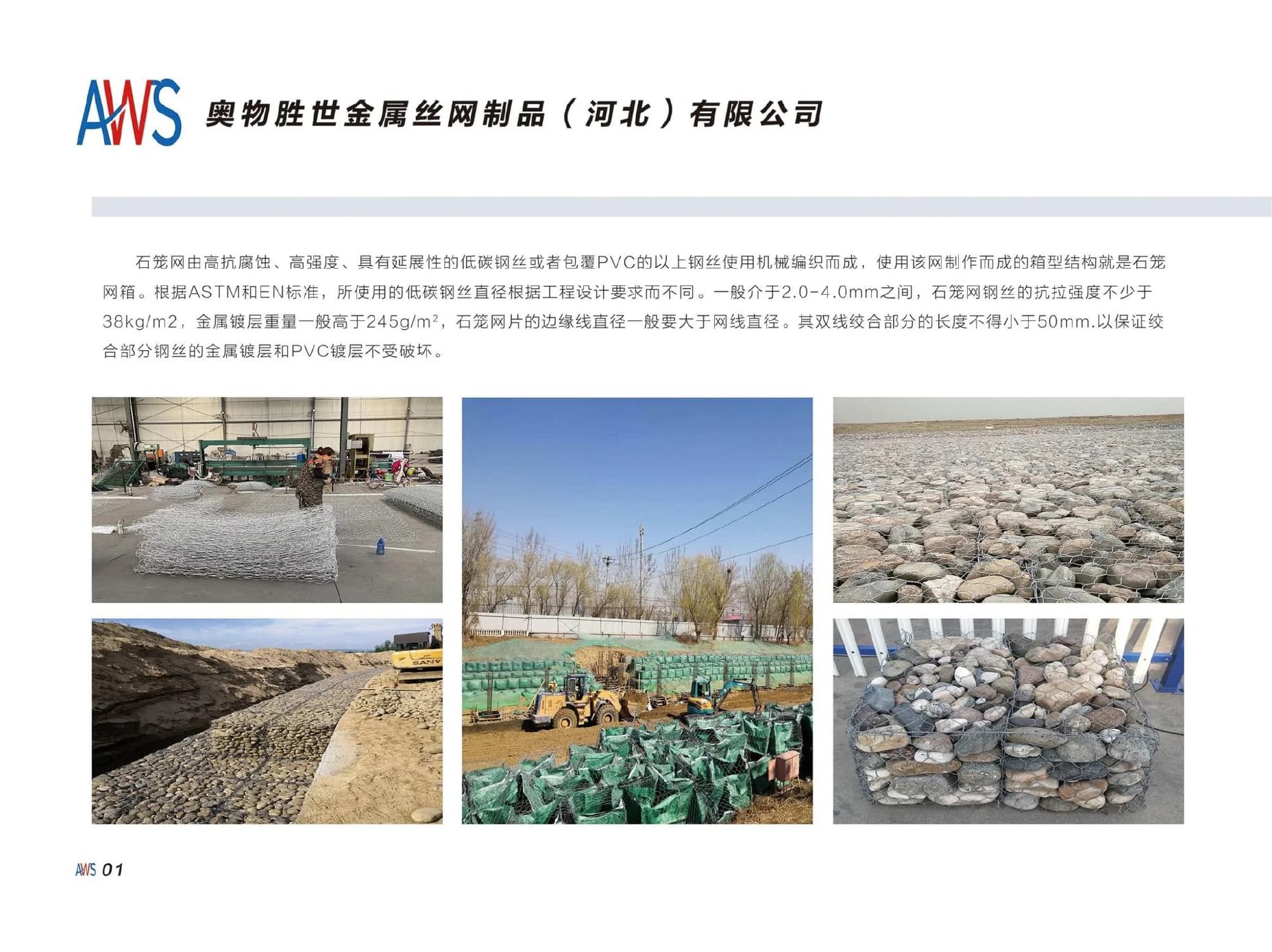

Hexagonal double-twist woven mesh for rock-filled retaining walls.
Manufactured per ASTM A975 and EN 10223-3. Selvedge wire is heavier than mesh wire; triple-twist lock prevents unravelling. Standard mesh 80×100 mm, wire Ø 2.7 mm, Zn coating ≥ 245 g/m².
Polymer-over-galvanized mesh for saline and polluted waters.
Extruded PVC jacket (0.5 mm typical) bonded over hot-dip galvanized core wire. Resists UV, acid rain and chloride attack — ideal for coastal revetments and industrial outfalls.
Zinc-5% aluminum-mischmetal alloy for 3× corrosion resistance.
Galfan (Zn-5Al-MM) coating per EN 10244-2 Class A delivers 2–3× the corrosion resistance of pure zinc. Recommended for harsh marine and acidic soil environments where galvanized fails in 5–8 years.
Thin gabion mattresses for channel lining and scour protection.
Low-profile (0.17–0.30 m) gabions subdivided into cells to resist uplift. Used as flexible apron on riverbeds, irrigation canals and spillways. ASTM A975 compliant.
Geocomposite of PP geotextile + steel mesh for erosion control.
Polypropylene geomat (≥ 350 g/m²) integrally bonded to double-twist steel mesh. Replaces loose rip-rap on embankments and rail/road approaches. CC5 / CC4 channel-protection rated.

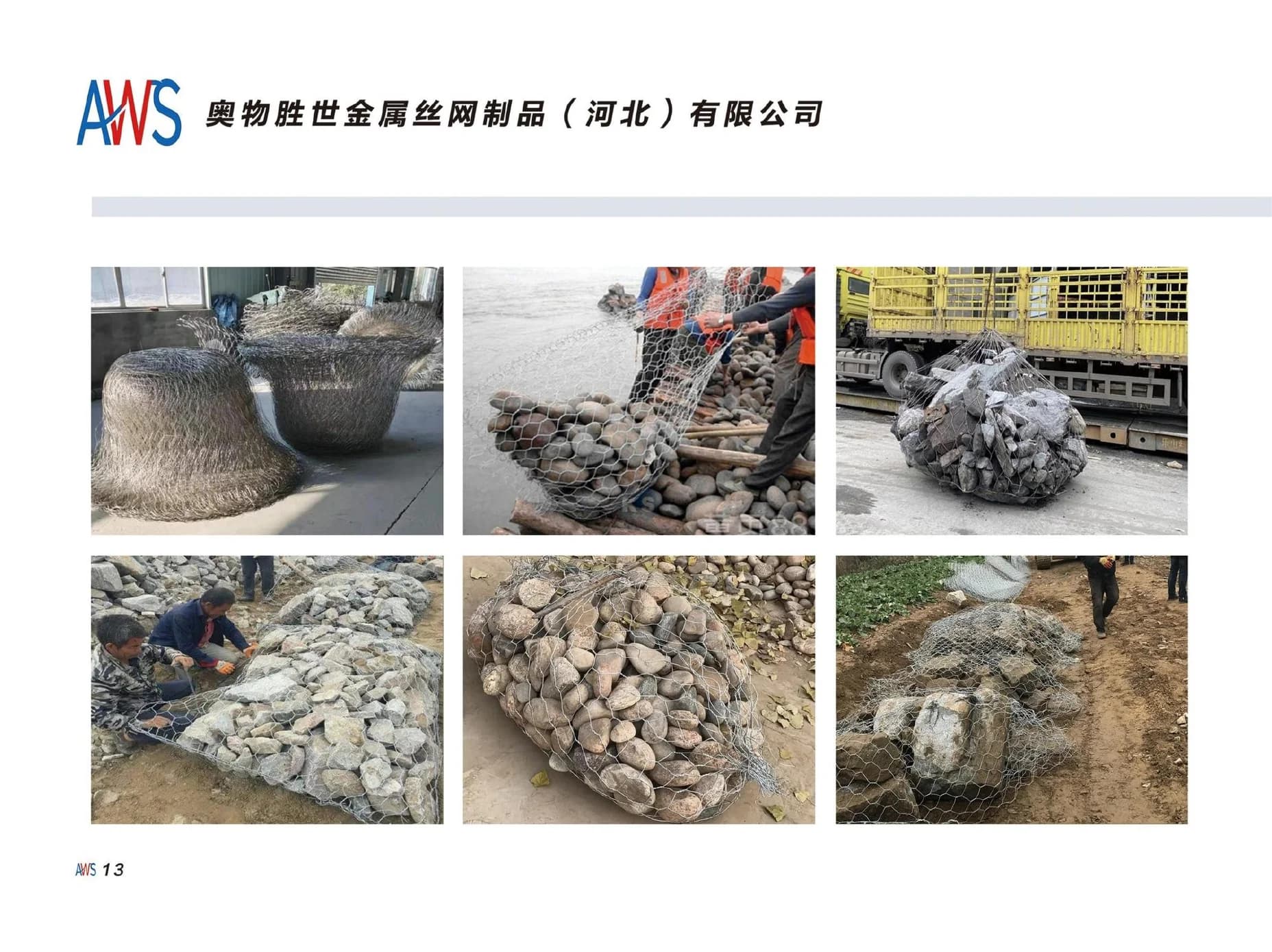

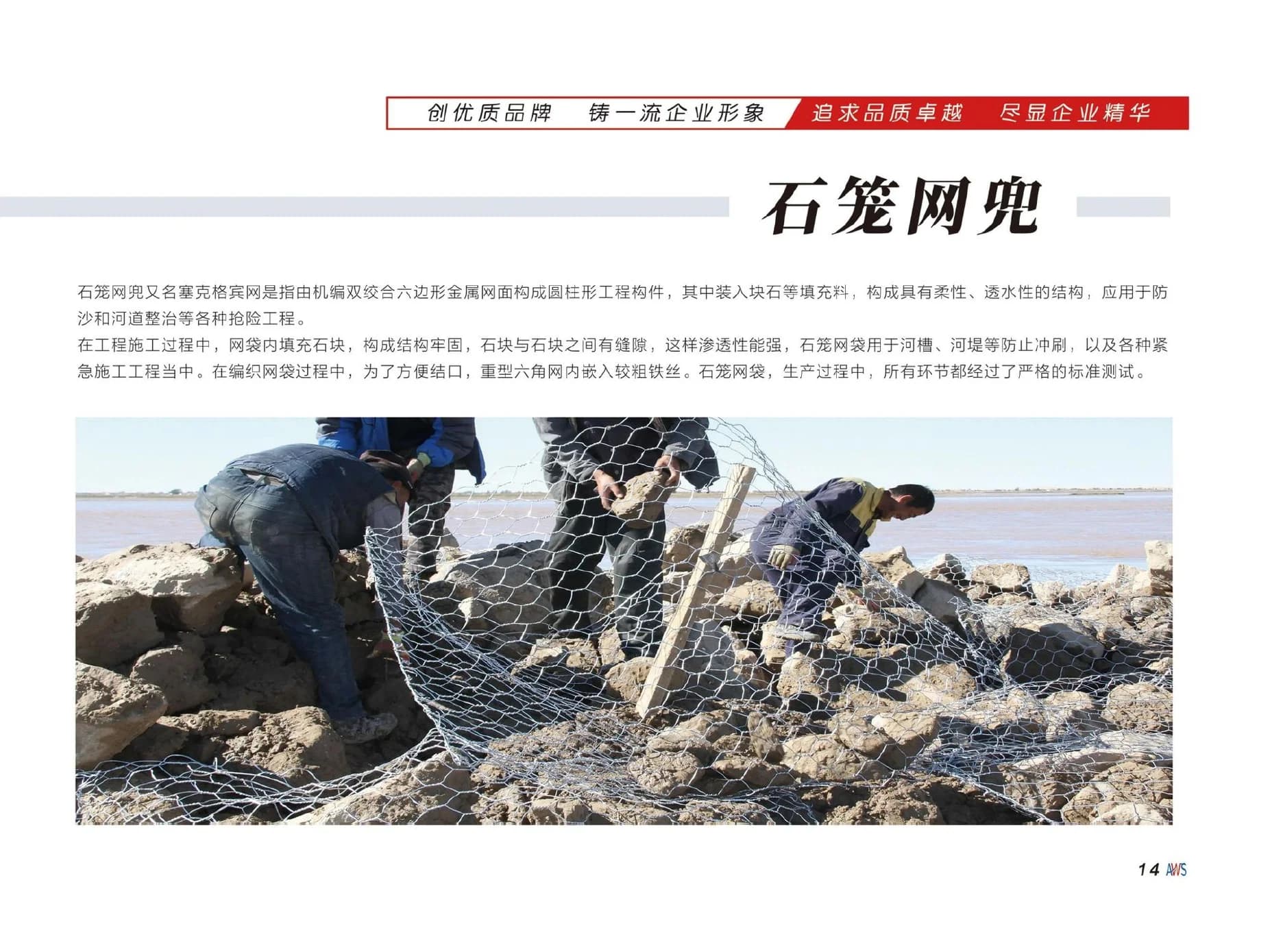

Cylindrical rock-filled units for emergency scour repair.
Pre-shaped cylindrical nets used as flexible ballasts in dam-break response and river-diversion works. Quick-deploy alternative to traditional rock armour.

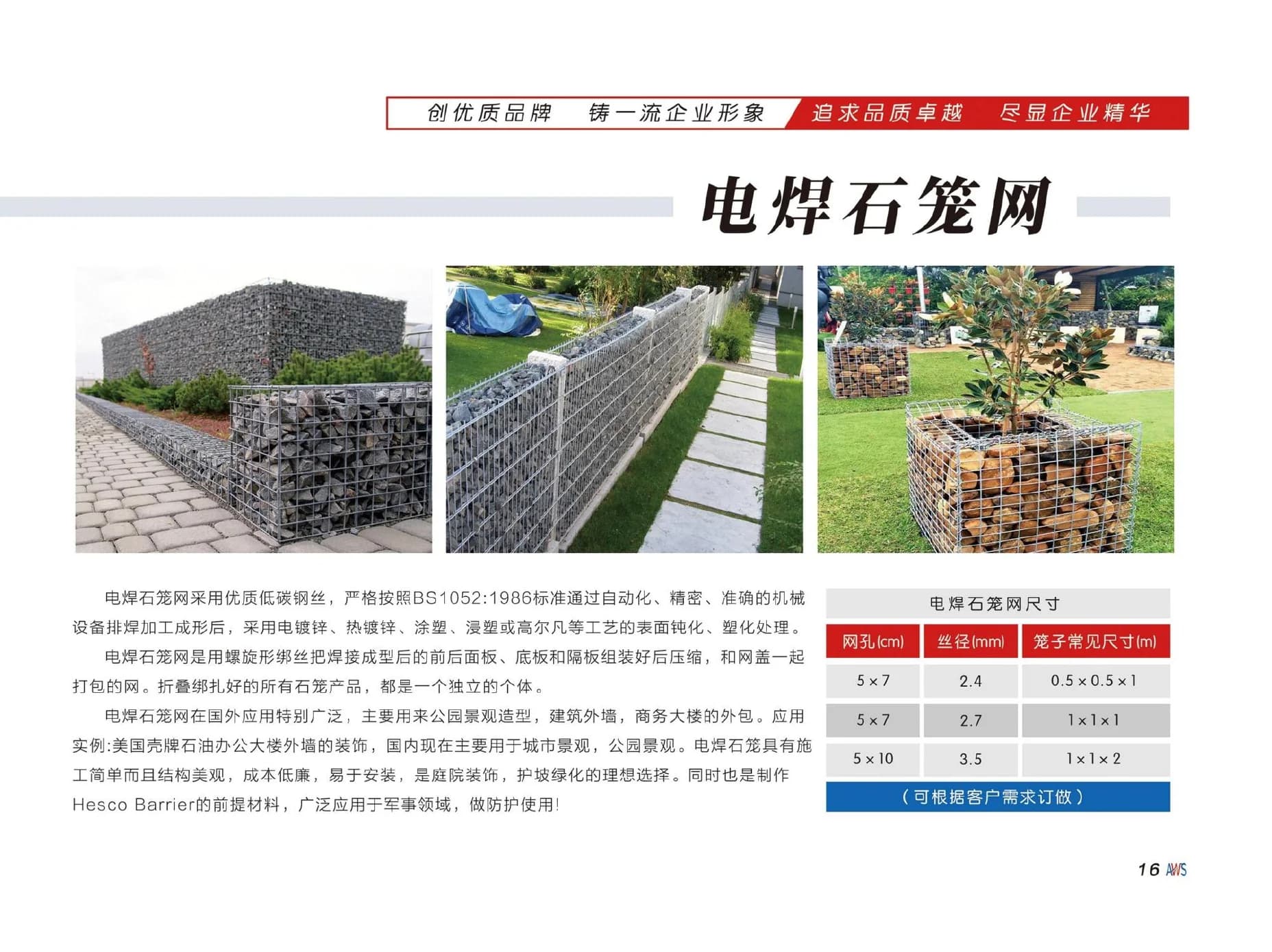

Architectural mesh panels for façades, planters and barriers.
Electro-forged grid panels with spiral binders — clean orthogonal geometry preferred by landscape architects. Used in HESCO defensive barriers and modern building skins.
Six decades of cumulative deployment across five continents.

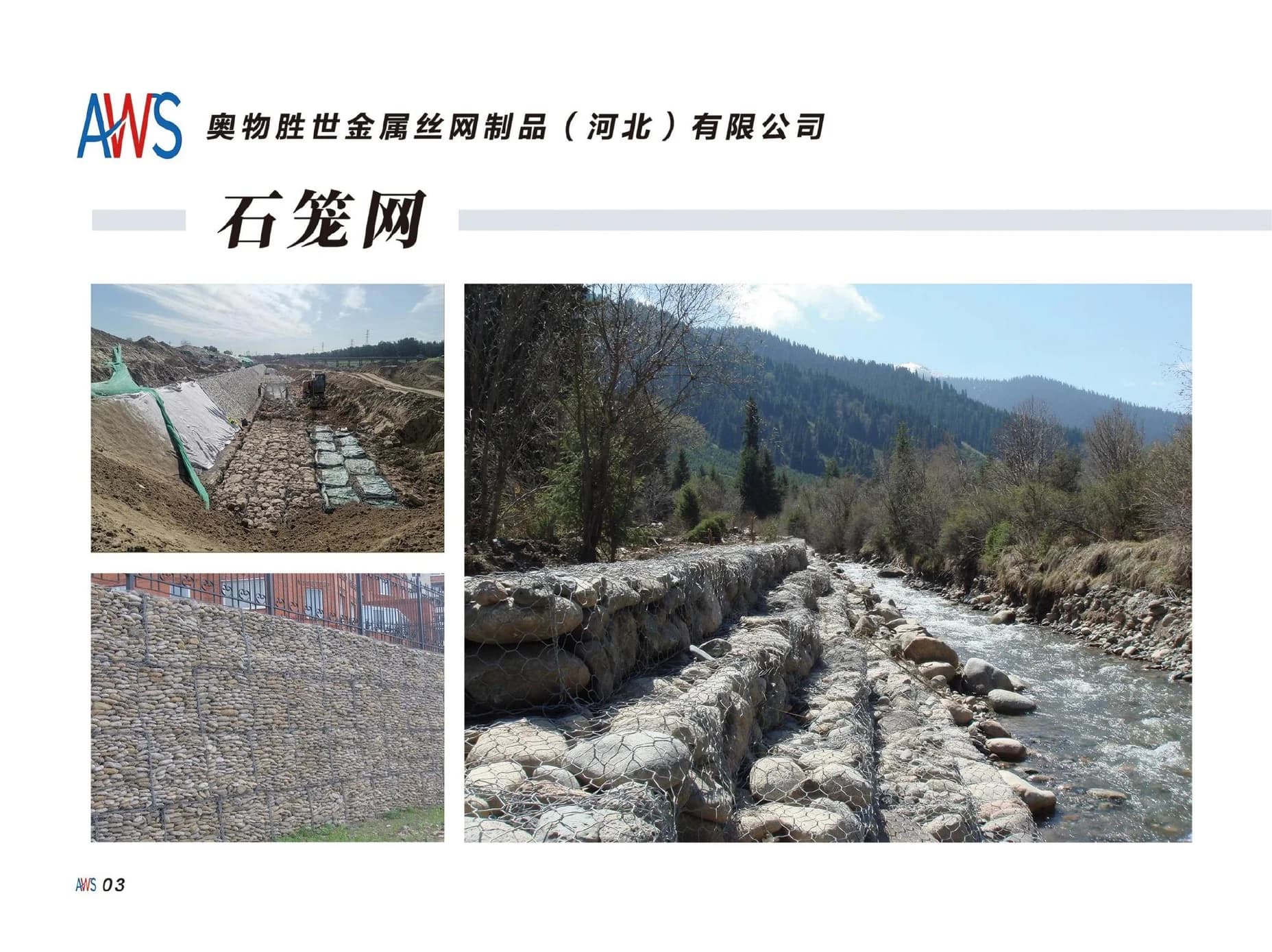

Flexible gabion walls absorb flood energy while allowing vegetation to root.
Reinforced MacMat stabilises slopes from 30° to 70° under heavy rainfall.
PVC and Galfan gabions resist chloride attack for 60+ years.
Welded gabion cells line heap-leach pads and mill-site containment.
HESCO bastions and welded mesh units for military and high-security perimeters.
Welded panels form retaining walls, planters, screens and acoustic barriers.

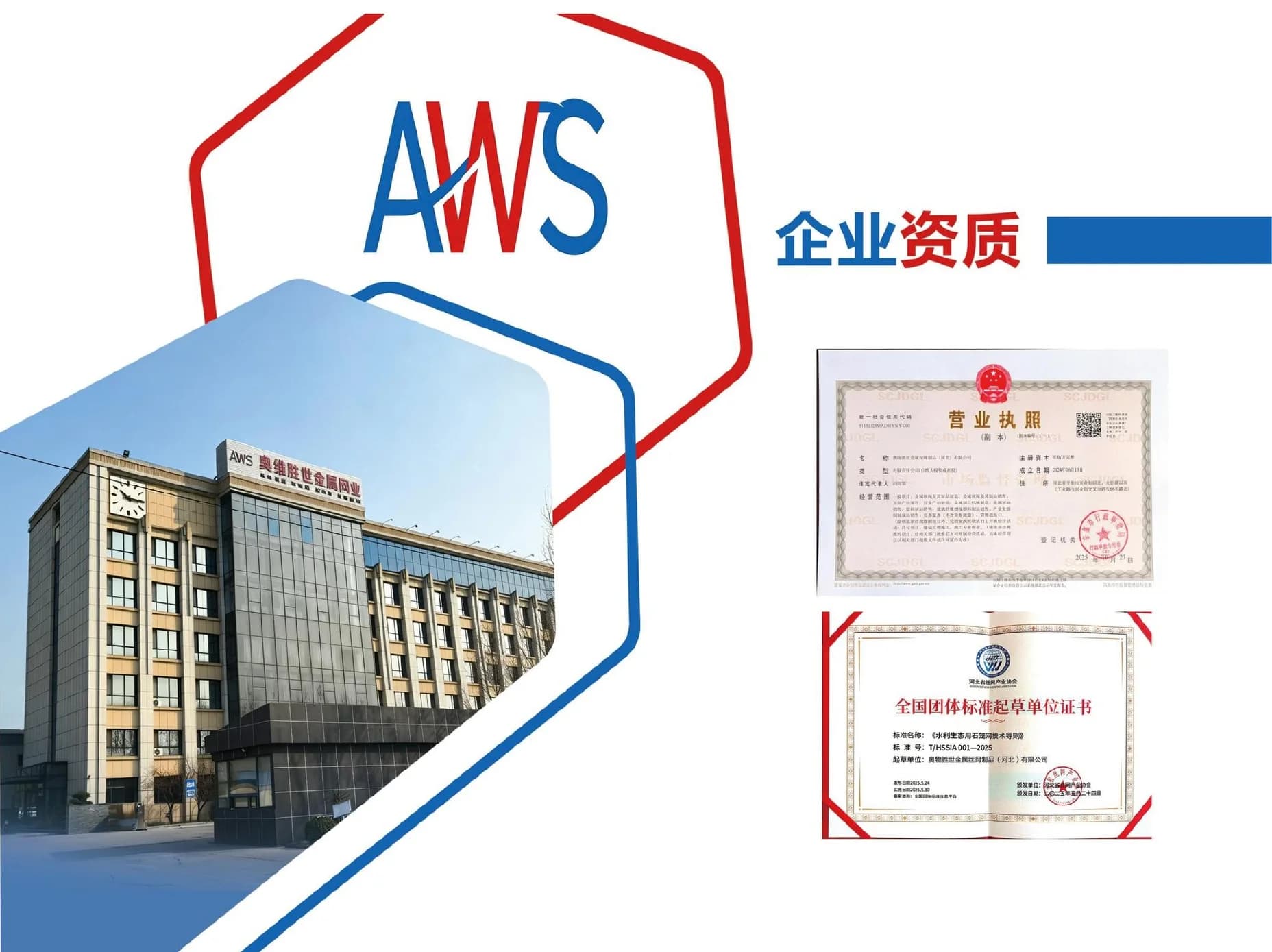

Every shipment ships with full traceability documentation.

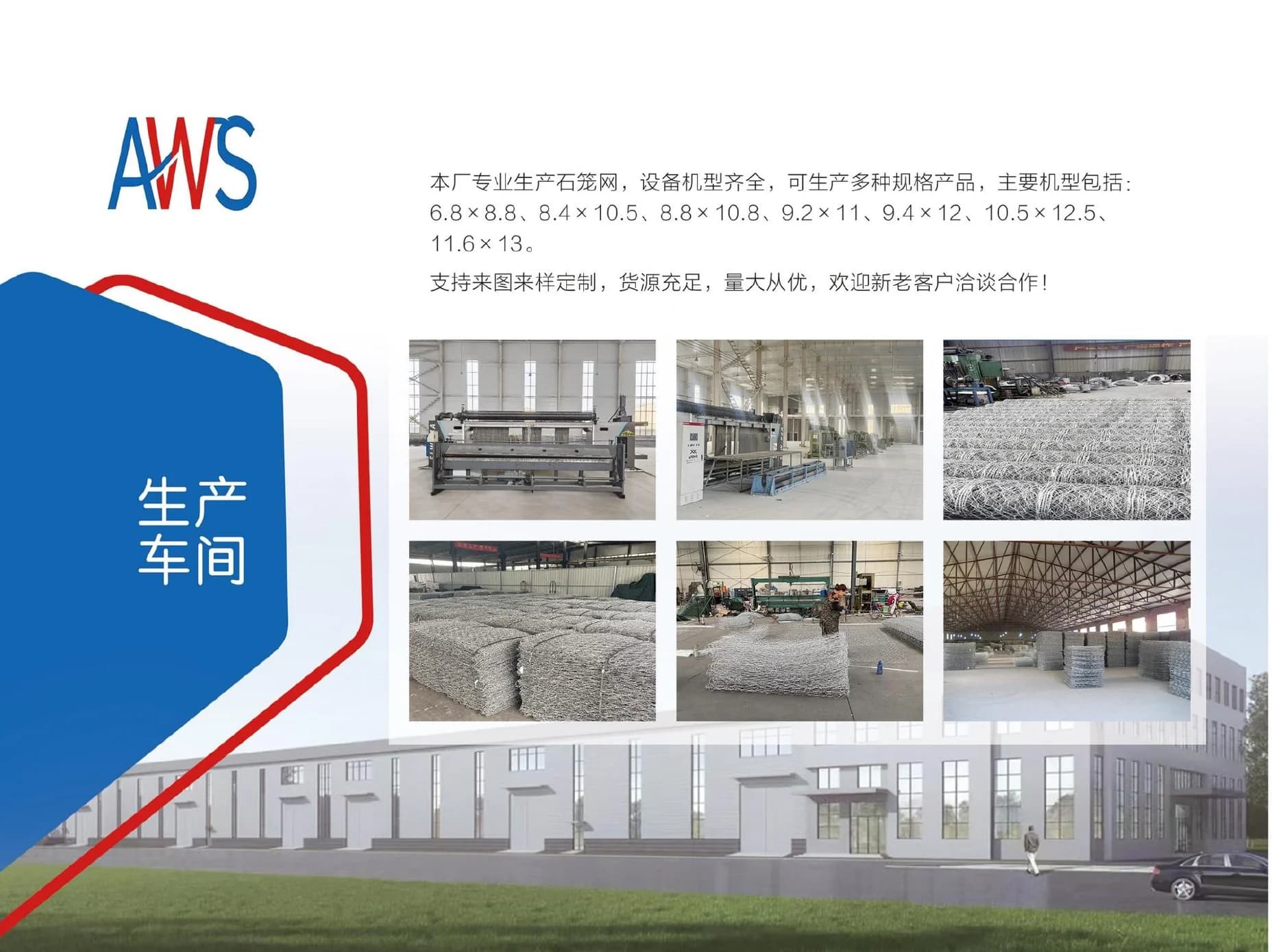

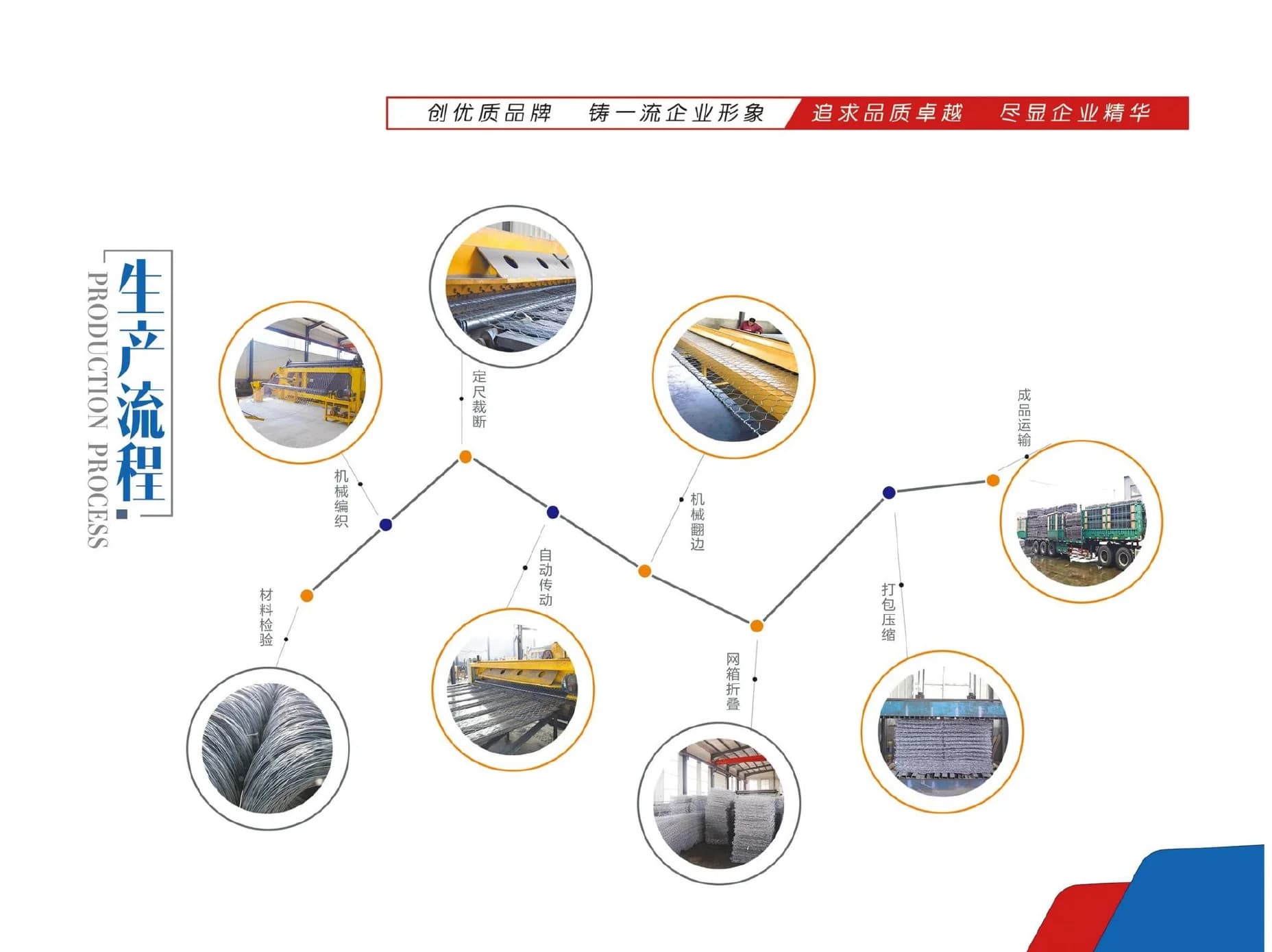

70,000 m² of weaving, welding, coating and QC capacity.

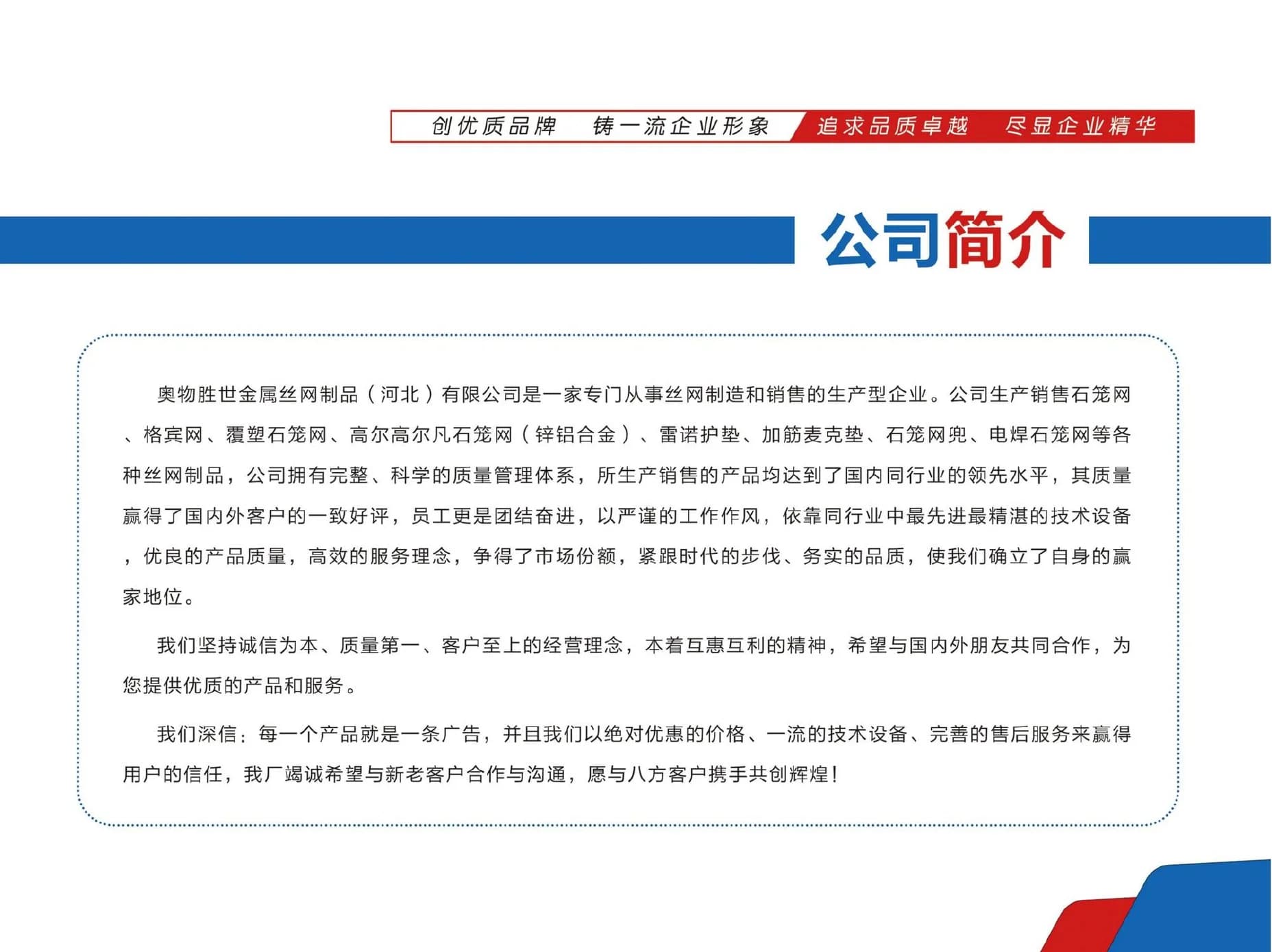

Located in Xinji — the largest wire-mesh cluster in North China — our 70,000 m² plant runs eight weaving lines and four automated welding cells, producing over 12,000 tonnes of finished gabion products annually.

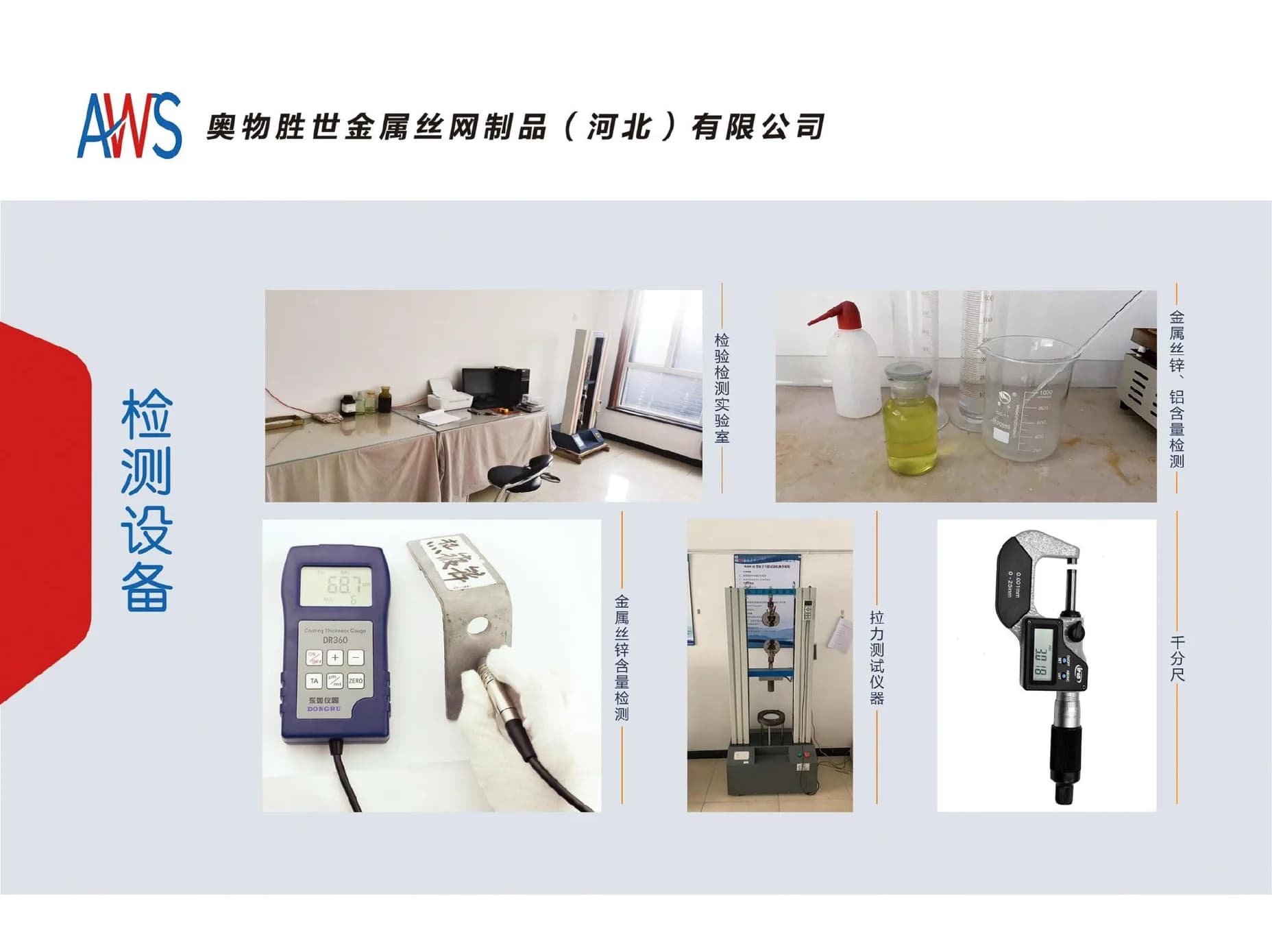

In-house Galfan (Zn-5Al-MM) and PVC coating baths eliminate sub-supplier variability. Every coil is sampled, drawn and salt-spray tested before dispatch.
Our engineering team has delivered gabion solutions for the China-Laos Railway, Indonesia's Kayan Hydropower Project, EU LIFE river restoration sites and African mining operators.
Our export team replies within 8 working hours (Beijing time).
